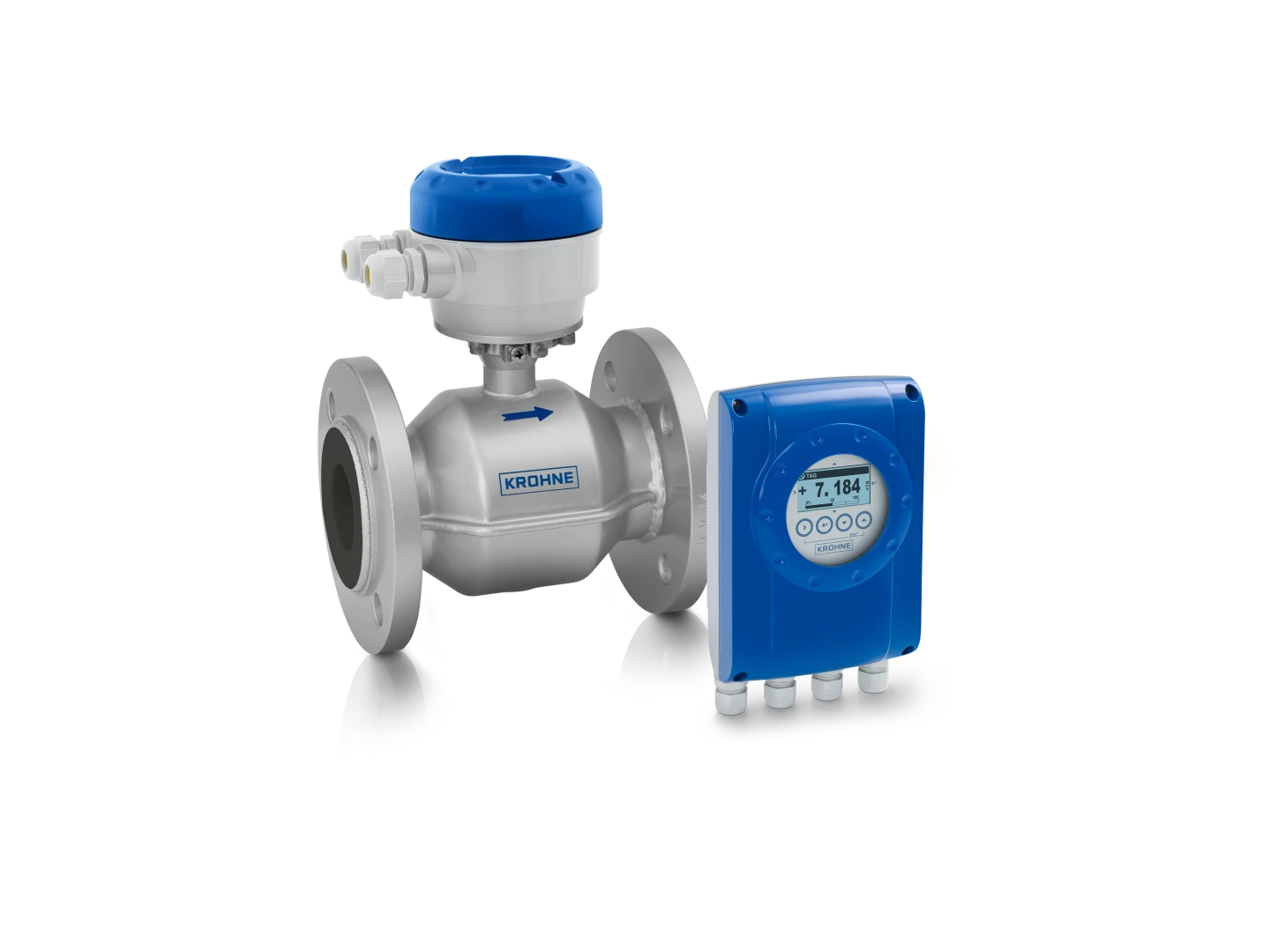

OPTIFLUX 2050 Wall-mount Electromagnetic Flow Meter

The OPTIFLUX 2050 is an electromagnetic flowmeter (EMF) for basic water and wastewater applications.

-Diameter range: DN25…1200 / 1…48", max PN16 / ASME Cl 300
-Bi-directional flow measurement (turn down ratio up to 1000:1)
-Process temperature: -5...+90°C
-Flange: Stainless steel
-Housing: Sheet steel
-Liner: Polypropylene, hard rubber
-Electrodes: Hastelloy® C, stainless steel
-Standard IP 66/67. Options for burial installation and constant flooding (IP68 available upon request)
-Extra isolation of electronics for use in high humidity areas
-Standard wet calibration
-Tamper proof, fully welded construction
-Full bore design
-Signal converter with display or as blind version
-Communication 4-wire, 1 x 4…20 mA, pulse, frequency, status, HART®, Modbus RTU
-Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
-Certified with SPAN approval
-High accuracy (±0.5%)

Options available upon request: Various pressure ratings, and communication options (FOUNDATION™ fieldbus, Profibus-PA, Profibus-DP, PROFINET).

Delivery Lead Time: 10 - 12 weeks upon order confirmation
