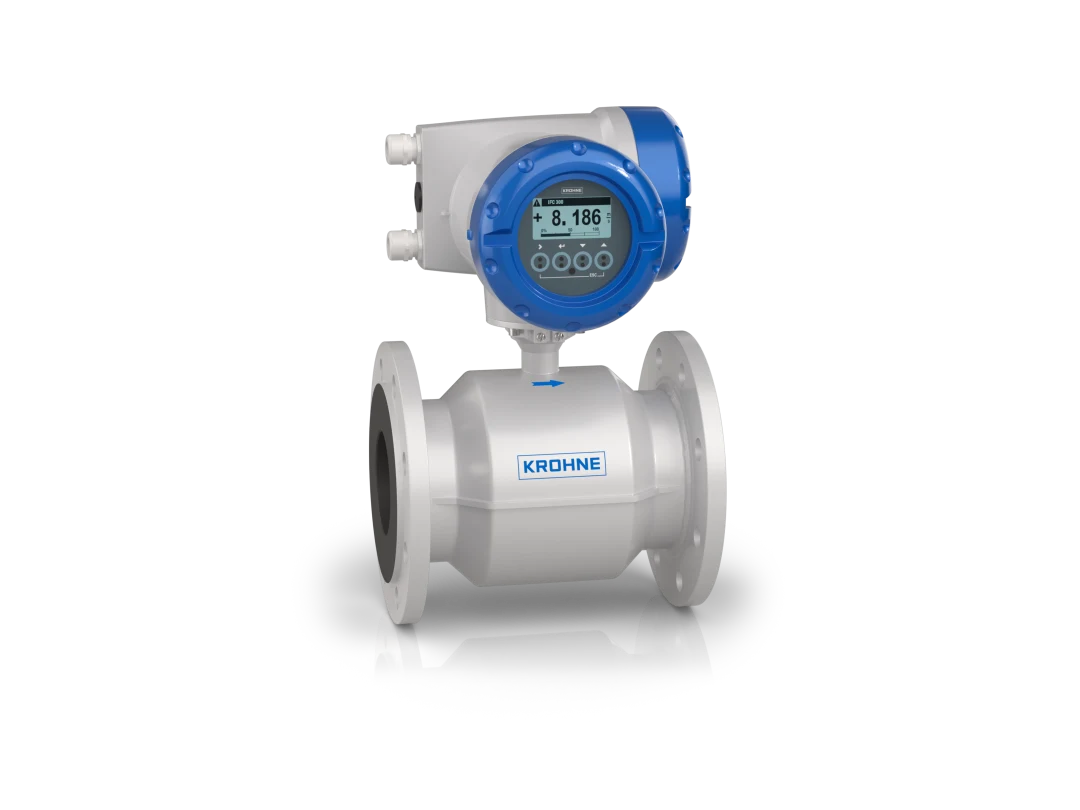

OPTIFLUX 2300 Compact Electromagnetic Flow Meter

The OPTIFLUX 2300 is an electromagnetic flowmeter (EMF) for all demanding applications with water and wastewater. The high-end meter is particularly suitable for applications requiring high accuracy and extensive diagnostics.

-Diameter range: DN25…3000 / 1…120", max PN16 / ASME Cl 300
-Widest diameter range available in the market
-Bi-directional flow measurement (turn down ratio up to 1000:1)
-0D/0D installation according to MID MI-001 and OIML R49 accuracy class 1
-Available with patented virtual reference grounding method for cost-saving installation without grounding rings
-Flange: Stainless steel
-Housing: Sheet steel
-Liner: Polypropylene, hard rubber
-Electrodes: Hastelloy® C, stainless steel
-Standard IP 66/67. Options for burial installation and constant flooding (IP68 available upon request)
-Tamper proof, fully welded construction
-Extensive sensor and process diagnostics (incl. NE 107)
-Communication 4-wire, 3 x 4…20 mA, HART®, Modbus RTU
-CT approvals: OIML R49, ISO 4064
-Meets potable water standards: ACS, DVGW, NSF, TZW, WRAS etc.
-Certified with SPAN approval
-High accuracy (±0.2%)

Options available upon request: Various pressure ratings, and communication options (FOUNDATION™ fieldbus, Profibus-PA, Profibus-DP, PROFINET).

Delivery Lead Time: 10 - 12 weeks upon order confirmation
