PDE9.AA

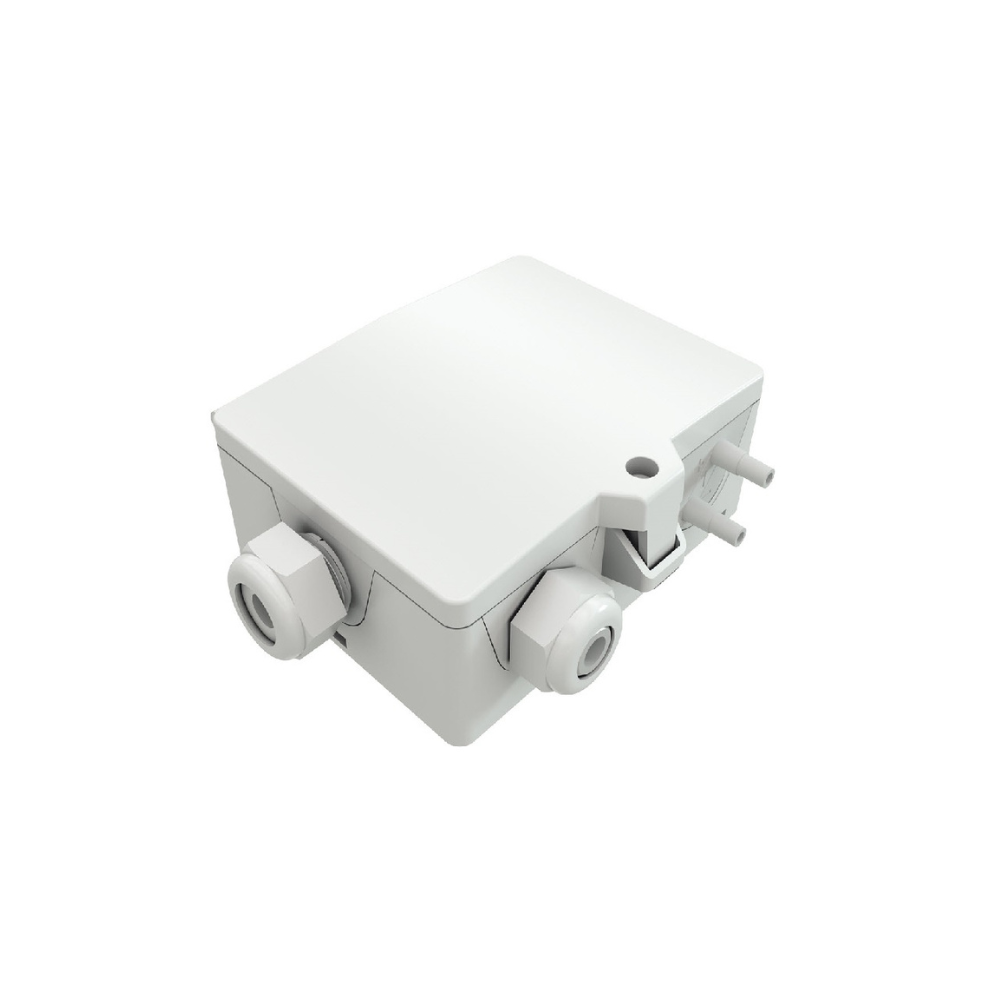

Air Differential Pressure Sensor - 1500…1500Pa, AC/DC24V with different type of communication output
RM1,013.00 RM1,072.00
Type

Pickup available at Anzen Business Park Warehouse

Usually ready in 5+ days

PDE9 Series

BACnet MSTP

Anzen Business Park Warehouse

Pickup available, usually ready in 5+ days

Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
Jalan 4/37 A, Kawasan Industri Bukit Maluri
52100 Kuala Lumpur KUL
Malaysia
Measured Air Differential Pressure
Sensor Characteristics Active
Sensor Output BACnet MSTP or Modbus RTU communication, RS485
0..10V or 4...20mA
Zero Point Accurracy 0.2 Pa
Zero Point Repetability 0.1 Pa
Over Pressure 1 bar, 100.000 Pa
Burst Pressure 2 bar, 100.000 Pa
Offset stability < 0.03 Pa / year
Calibrated Temperature Range -40...85°C
Response Time Filter 0...60sec.
Measuring Range (Bus- System) -1500...1500 Pa
Media Compatitbility Air, N2, O2, non condensing
