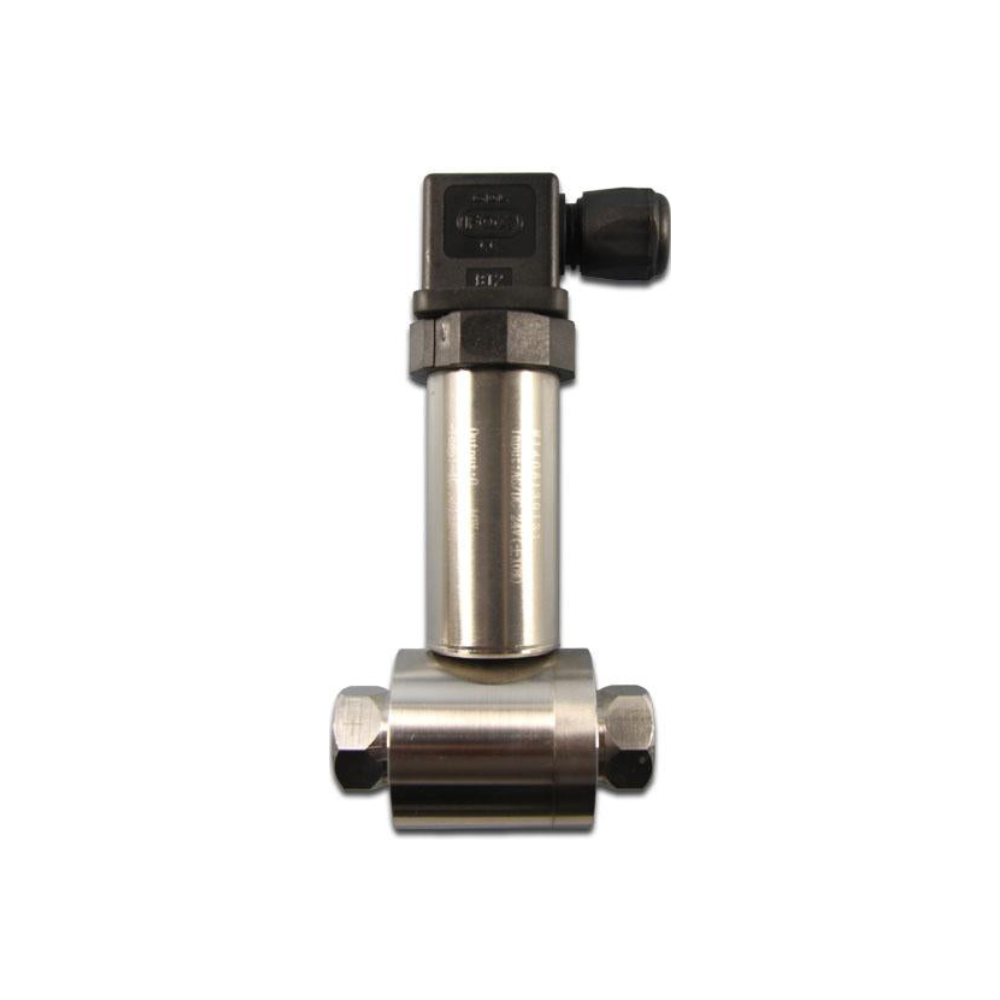

PPE1 Series - Water Differential Pressure Active Sensor

PPE1.DAa

Water Differential Pressure Active Sensor PPE1 Series is designed to measure differential water pressure in HVAC heating and cooling systems with light aggressive liquids and refrigerants.

Sensor output: 0-10V or 4-20mA

Accuracy: 0.5% full scale

Medium temperature range: -40°C...+125°C

Bursting pressure: 300% of measuring range

Power supply: 24VAC/DC

Delivery Lead Time: 6-8 weeks upon order confirmation

RM2,488.00 RM2,649.00

Measuring Range & Sensor Output 0...1bar , 0-10VDC 0...2.5bar , 0-10VDC 0...4bar , 0-10VDC 0...6bar , 0-10VDC 0...0.5bar , 0-10VDC or 4-20mA 0...1bar , 4-20mA 0...2.5bar , 4-20mA 0...4bar , 4-20mA 0...6bar , 4-20mA

Pickup available at Anzen Business Park Warehouse

Usually ready in 5+ days

Measured	Water Differential Pressure
Sensor Characteristics	Active
Sensor Outputs	0..10V / 4...20mA
Accuracy	0.5% Full Scale @ 250C
Compensated Temperature Range	-10°C...+80°C
Temperature Drift (FS), typically	±0.02% FS / ̊C
Long Term Stability	±0.2% FS / Year
Medium Temperature Range	-40°C...+125°C
Busting Pressure (diaphragm)	300% of Measuring Range
