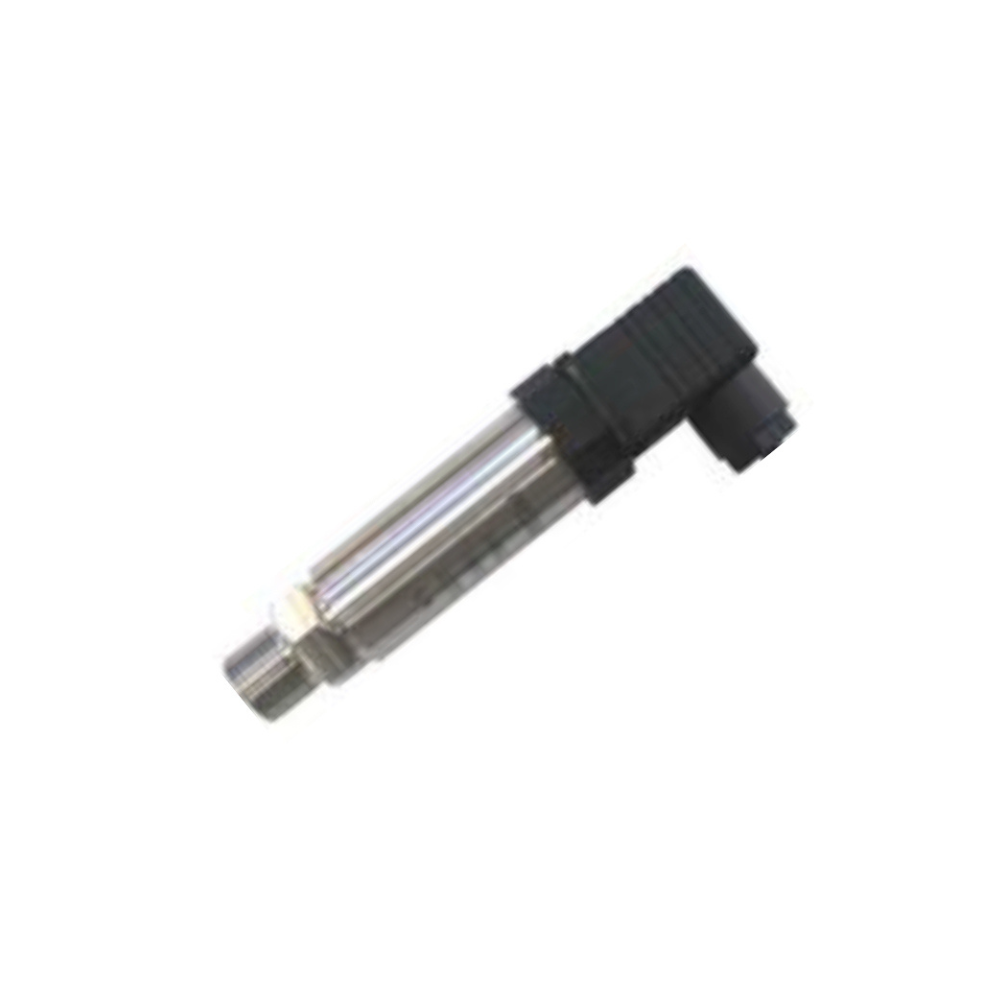

PPI1 Series - Water Pressure Active Sensor

The PPI1 Series is designed to measure water pressure in HVAC heating and cooling systems with light aggressive liquids and refrigerants The control output is active. Sensor with active output with different measuring range.

• Sensor Characteristics: Active
• Accuracy: 0.5% Full Scale @ 25⁰C
• Compensated Temperature Range: -10⁰C ... +80⁰C
• Temperature Trift FS typically: ±0.02% FS / ̊C
• Long Term Stability: ±0.2% FS / Year
• Response Time: <1ms
• Max Over Pressure: 200% of Measuring Range
• Busting Pressure (diaphragm): 300% of Measuring Range
• Medium Temperature Range: -40⁰C ... +125⁰C
