R3050-40-S4+SR24A-SR
R3050-40-S4+SR24A-SR

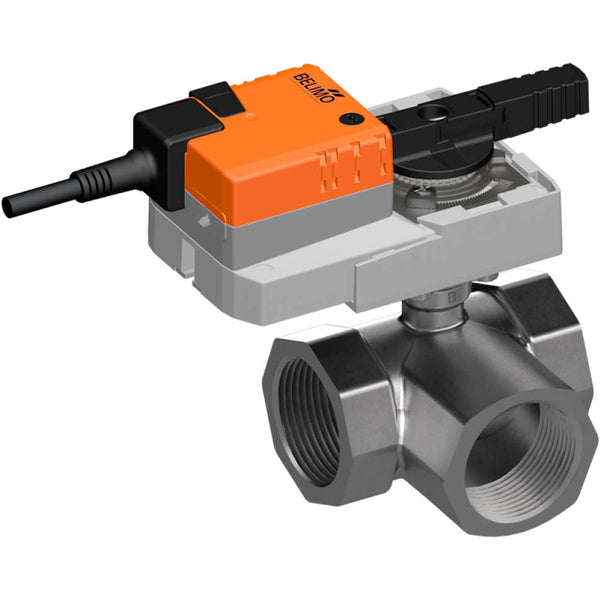

3 way Motorised Control Valve (Ball Type): DN 2"/50 , Kvs: 40 , 24V,Modulating 0(2)-10V,Non Spring Return
RM2,677.00
Pickup available at Anzen Business Park Warehouse
Usually ready in 5+ days
Specifications
| Valve specifications | |
|---|---|
| Pattern | 3-way |
| Kvs | 40 m³/h |
| Fluid | Water, water with glycol up to max. 50% vol. |
| Fluid temperature | -10...120°C [14...248°F] |
| Fluid temperature note | At a fluid temperature of -10...2°C, a spindle heater or a valve neck extension is recommended. The allowed fluid temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators. |
| Differential pressure | ∆pmax 350 kPa |
| Close-off pressure | 1400 kPa |
| Differential pressure note | 200 kPa for low-noise operation |
| Flow characteristic {Tools} | A – AB: equal percentage; B – AB: linear |
| Leakage rate {Tools} | A – AB: air-bubble tight, leakage rate A; B – AB: Leakage class I, 1...2% of the Kvs value |
| Pipe connection | Internal thread |
| Actuator specifications | |
| Voltage AC/DC | AC/DC 24 V |
| Power consumption (running) | 2.5 W |
| Power consumption (holding) | 0.4 W |
| Power Consumption For Wire Sizing | 5 VA |
| Connection Supply Control | Cable 1 m, 4x 0.75 mm² |
| Control type | DC 2...10 V |
| Protection category | IP54 |
| Degree Of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
