VAV Controller

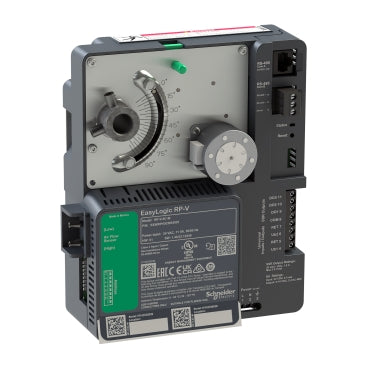

EasyLogic RP-V is a room-purpose, fully programmable, BACnet MS/TP based field controller dedicated for VAV cooling and Heating applications. The RP-V can either be used as a standalone field controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server as the parent server.

The RP-V is a BACnet Advanced Application controller (B-AAC) that can be installed as a 3rd party BACnet device in any BACnet BMS, or as natively part of an EcoStruxure Building BMS system. The RP-V is an integrated controller with VAV damper actuator and factory calibrated air flow sensor.

The on-board damper actuator has a torque rating of 10Nm, and so is capable of controlling most commercially available VAV boxes. The RP-V-5C has 2 Universal IO Type Ub and 3 Solid-state Relay outputs. Its dimensions are 201 mm (7.9 in.) in height, 168mm (6.6in.) in width and 65 mm (2.6 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146.

The device can be installed directly onto the VAV box damper shaft. Available eCommission Bluetooth Adapter (SXWBTAECXX10001), In-line air filter (01-2100-272) and Adapter for 9.5mm damper shaft (AM-135).
