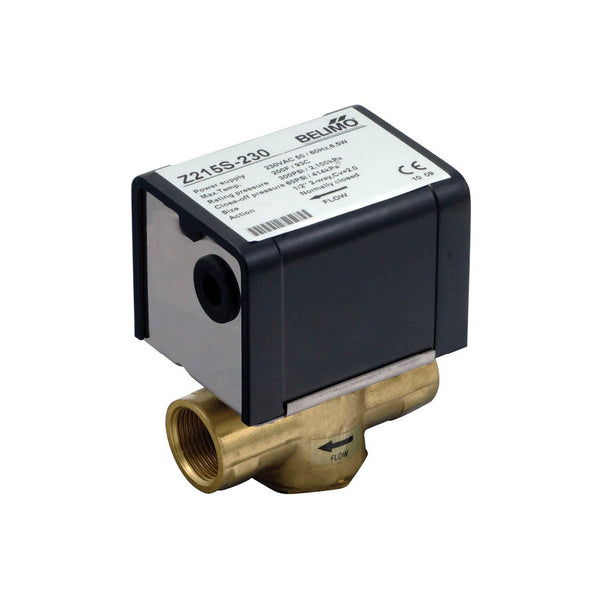

2-way Zone Valve DN20

  • DN20, Max. Kvs 2.2m3/hr
  • Open/close control,-  AC-  230-  V
  • De-energised closed (NC)
  • Rated pressure: 2100kPa
  • Pipe Connection: Internal thread BSP
  • Close off pressure: 303 to 414kPa-
  • Temperature range of medium: 0°...‚+93°C
  • Valve body: Forged Brass

Delivery Lead Time: 1-2 weeks upon order confirmation
    RM264.00

    Pickup available at Anzen Business Park Warehouse

    Usually ready in 5+ days

    Z220S-230

    Anzen Business Park Warehouse

    Pickup available, usually ready in 5+ days

    Anzen Business Park, Jalan 4/37 A, Kawasan Industri Bukit Maluri, 52100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
    Jalan 4/37 A, Kawasan Industri Bukit Maluri
    52100 Kuala Lumpur KUL
    Malaysia
    Valve specifications
    Pattern 2-way
    Kvs 2.2 m³/h
    Fluid Water, water with glycol up to max. 50% vol.
    Fluid temperature 0...93°C [32...199°F]
    Fluid temperature note (non-freezing)
    Close-off pressure 344 kPa
    Pipe connection Internal thread
    Actuator specifications
    Voltage AC/DC AC 24 V (Z2..S-24) / 230 V (Z2..S-230)
    Power consumption (running) 6.5 W
    Power Consumption For Wire Sizing 7 VA
    Connection Supply Control Cable 1 m, 2x 0.75 mm²
    Control type Open/close
